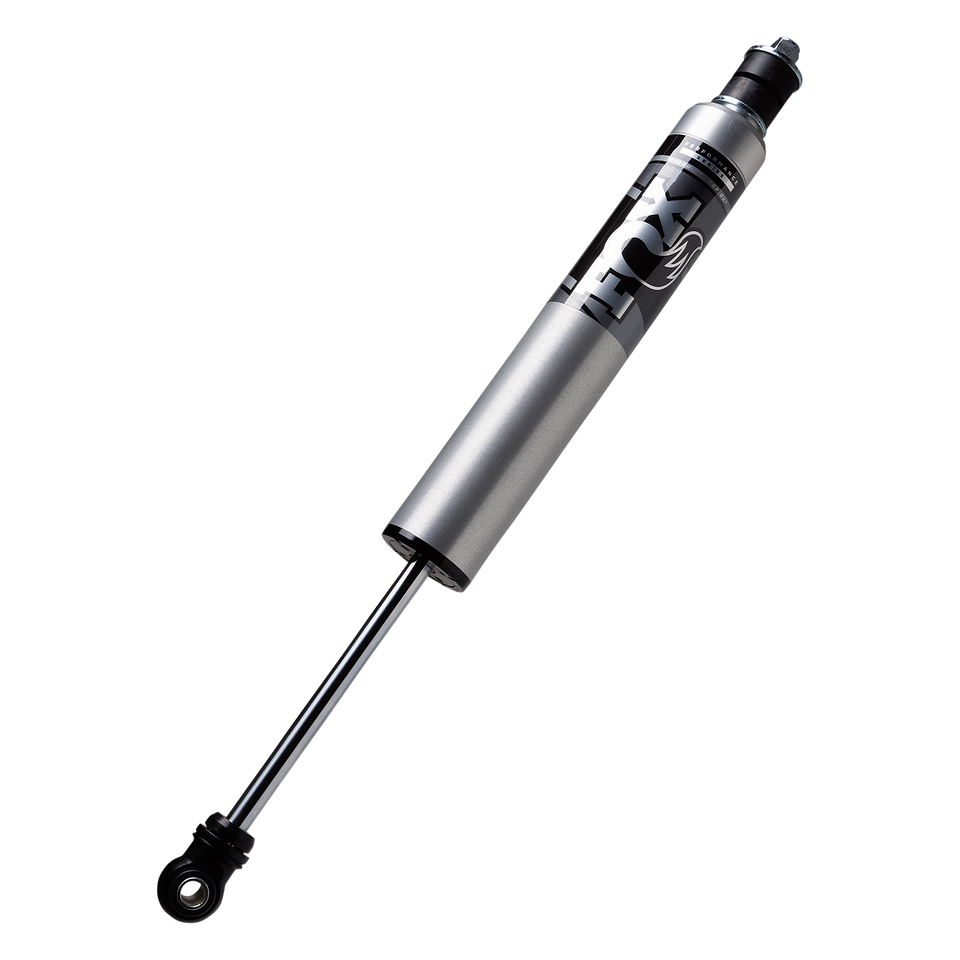

FOX 2.5 Performance Series HTO Shock for 2017+ Ford Super Duty w/ 4-6in Lift - Front

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

Installation Instructions

FEATURES:
2.5” Impact extruded 6061-T6 aluminum shock body
Type II clear-anodized body plating
High-flow velocity-sensitive damping
5/8” hard chrome shaft
Internal floating piston (IFP)
Hydraulic Top Out (HTO) piston

TRAVEL: 9.29"
EXTENDED LENGTH: 26.29"
COMPRESSED LENGTH: 17"
TOP MOUNT: Stem Top
BOTTOM MOUNT: Eyelet
FITMENT NOTES: Lift: 4-6 inches
